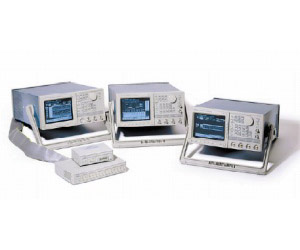

DG2040 - Tektronix Pattern Generators

1.10Gbps (Max. Data Rate)

Data Rate to 1.1 Gb/s Tests High-speed Logic Devices and Circuits Data Pattern Depth to 256 K/channel Speeds Characterization Multiple Output Channels Increases Flexibility : 2 Control of Edge Timing Permits Jitter Simulation in Serial Data Streams Precise Control of Output Parameters Include: Variable Output Delay Variable Output Level Variable Rise and Fall Time Control Fast Transition Times to 150 ps Aids Fast Logic Evaluation Complementary Output Assures Excellent Signal Fidelity Flexible Sequence Control with Jump, Event and Nested Loops Large Display for Easy-to-Use Data Editing Import Pattern Data with DG-link Software Utility Integrate into ATE Systems via GPIB/RS-232-C Interface

Specifications

Max. Data Rate

1.10Gbps

Channels

Max. PRBS Pattern

n/a

Pattern Depth

360 to 256 Kbits (4 increment)

More Details

Data Pattern Generator, 0.1 Hz to 1100 MHz
